Why CPR BAND

High Quality CPR

CPR should be carried out
until the victim is resuscitated,
however it could be inaccurate
due to physical limitations.

Without an assistance CPR product,
CPR could be inaccurate
and survival rates fall as time goes by.

Increasing number of heart-related deaths

The number of heart-related deaths
is the most primary cause of death
in the world
and it still has been increased due to
population ageing, excessive meat
consumption and lack of exercise.

A Cardiac arrest is disease
but it seems like the accident, and
nobody knows who will be the victim.
To overcome a cardiac arrest is preparing
and CPR BAND is an efficient
and accurate solution.

4 Minutes of golden time

If a victim doesn’t receive CPR
within 4 minutes,
the brain gets critical damages and
it leads to a permanent disability.
It is brief time to wait for EMS
providers or to bring a CPR aid
to a nearby location.

However, CPR BAND is convenient to
carry and can response immediately
to the emergencies.

How to protect your lovers

Someone who can be a hero is
a doctor, EMS provider, and your family
and what they need is CPR BAND.

We can give CPR BAND for your family
as a present and it is going to be
a first step to protect your lovers.

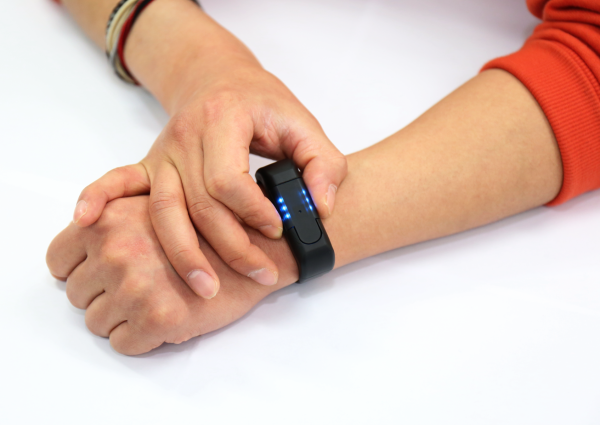

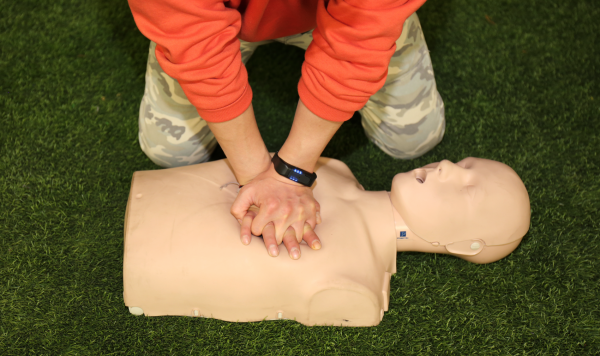

CPR Band for Training

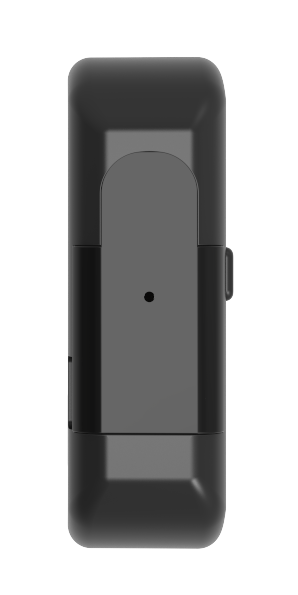

Lightweight, compact, and
powerful CPR BAND

CompatibilityEfficiencyChest Compression Axis
Possible to use in any manikinA single application can control multiple CPR BANDPossible to measure the accurate chest pressure angle

How to use CPR BAND

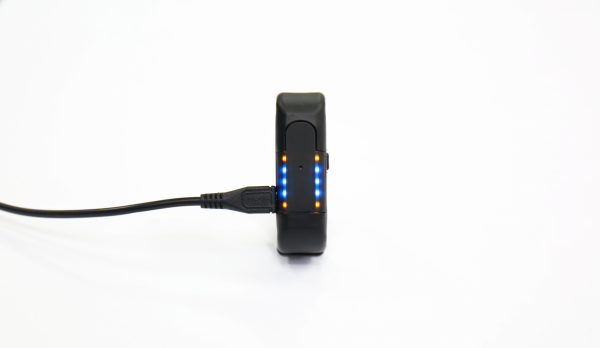

Charging CPR BAND

When the user turns on the product, the battery amount is displayed for 1 second and then the product will be ready state

Power ON!

If you press the button,
CPR BAND for Training turns into ‘Single Ready’ state.

If you press the button again, it enters ‘Single CPR mode.’

Connecting Application

There are two installation methods.
Method 1 : Search and install [cpr band for training] on the Play store.
Method 2 : If you scan the QR code below, you will be connected to the application install link.

After you run the application, the login screen appears.
If you do not have an account, sign up and login.

Practice

If the trainer wants to train, select [Practice].
Select [Ready] to stop the raining and return to the Ready mode.

Evaluation

If the trainer wants to evaluate, select [Evaluation].
The evaluation will proceed for setup time.

Record

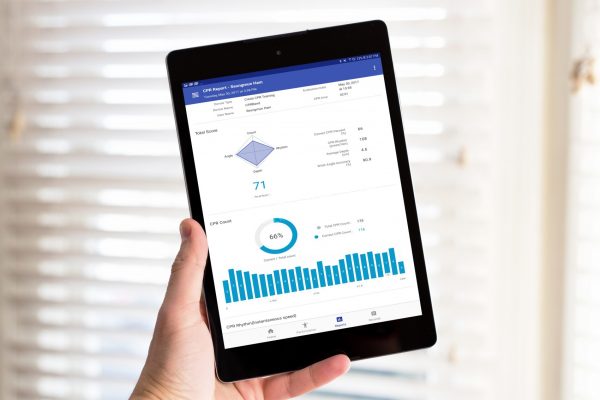

CPR evaluation reports can be converted to PDF files
for e-mailing or printing.

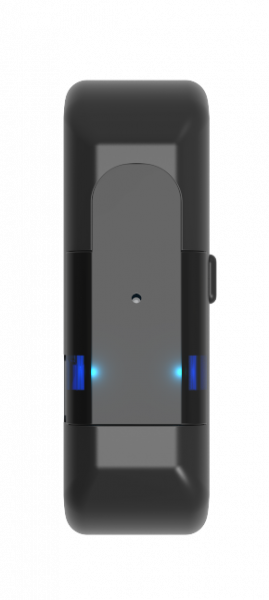

CPR BAND for Training Guide to compression depth

Errors are ONLY valid for standard CPR

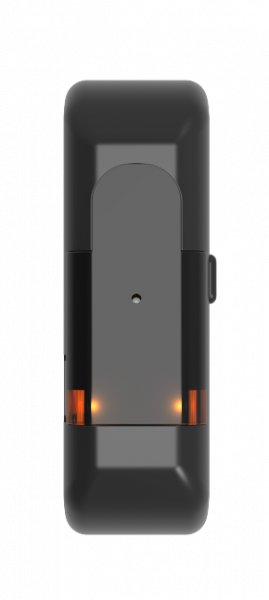

level 1
(under 4.5cm)

lower Orange LED lights up

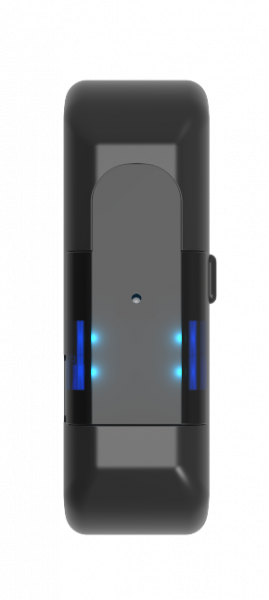

level 2
(4.5cm ~ 5cm)

1 Blue LED lights up

level 3
(5cm ~ 5.5cm)

2 Blue LEDs light up

level 4
(5.5cm ~ 6cm)

3 Blue LEDs light up

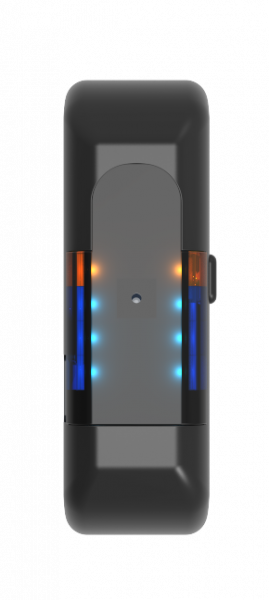

level 5
(6cm above)

upper Orange LED and
3 Blue LED light up

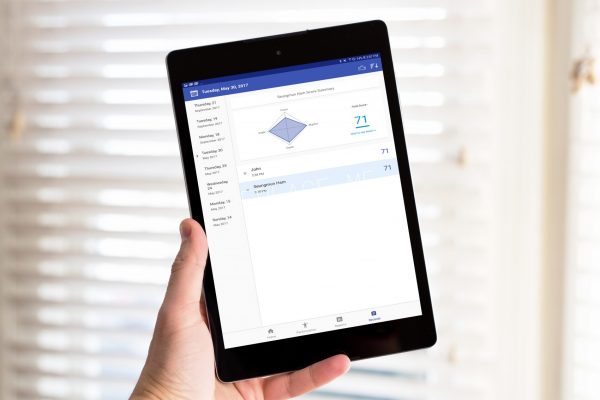

Application

Comprehensive CPR history

Record CPR time, correct chest compressions and full chest compressions

Notice of Pressure Depth

Move status bar in real time according to pressing depth

Notice of Pressure Posture

Notify the practitioner’s posture in real time when compressing the chest

Notice of Pressure Rhythm

Notify the rhythm of real-time trainees during chest pressure

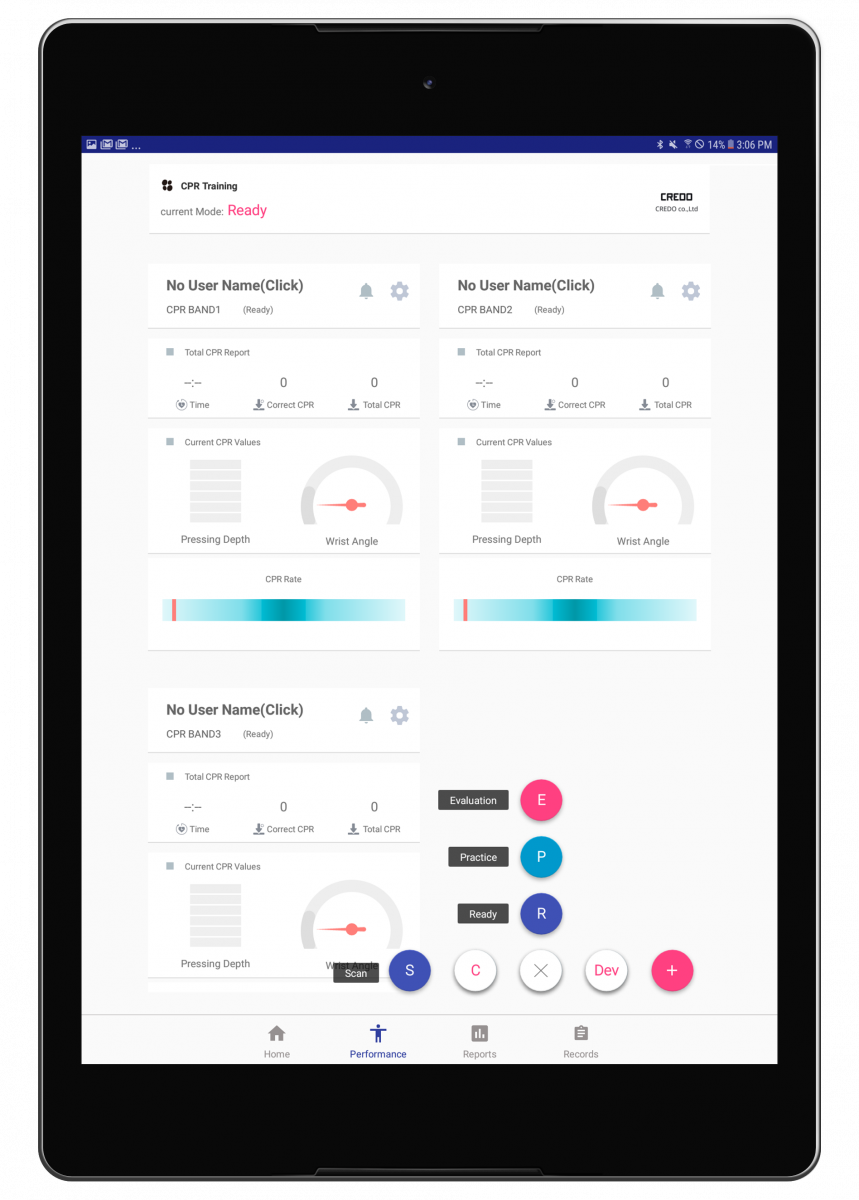

Application Guide

1
2
3
4
5
1

Scan : Connecting CPR BAND with application

2

Ready : Getting ready before starting Practice or Evaluation mode

3

Practice : In Practice mode, the LED lights up according to the change in range set by the trainer

4

Evaluation : CPR evaluation reports can be converted to PDF file for e-mailing or printing.

5

Report : CPR evaluation reports can be converted to PDF file for e-mailing or printing.

Scan

Connecting CPR BAND with application

Ready

Getting ready before starting Practice or Evaluation mode

Practice

In Practice mode, the LED lights up according to the change in range set by the trainer

Evaluation

In Evaluation mode, the LED and Buzzer functions do not work in the CPR BAND for Training of the trainees, and the evaluation takes 2 minutes.

Report

CPR evaluation reports can be converted to PDF file for e-mailing or printing.

Using rechargeable battery

CPR BAND make user to be able to practice CPR
up to 4 hours in respond to a built-in battery.

If you don’t use CPR mode,
it could be used up to 2 weeks.
It contains function that displays battery remains.
And it takes only 10 minutes
from fully discharge to fully charge.

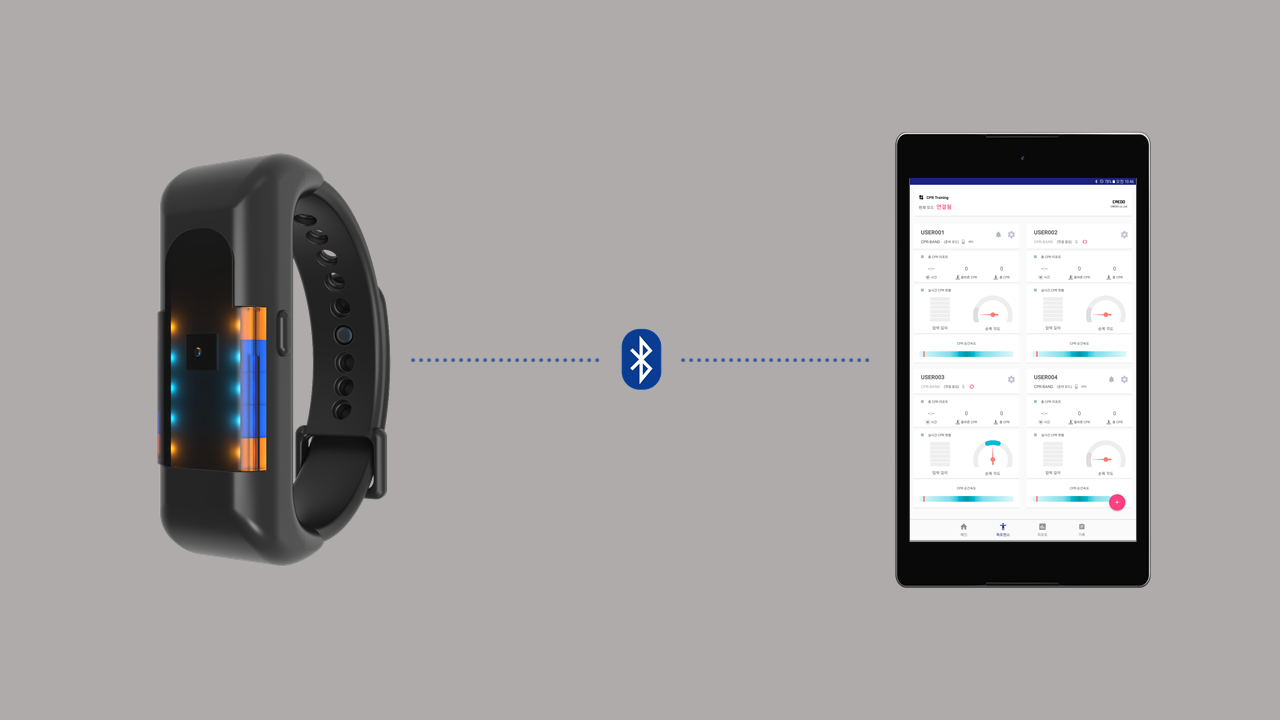

Bluetooth function

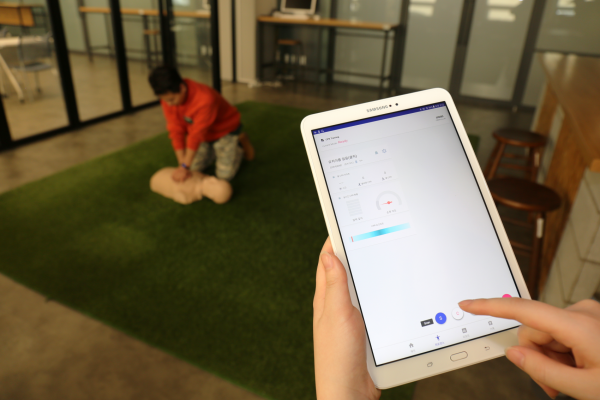

CPR BAND for Training work with Bluetooth function.
It also can be used by connecting smart device.
Connect and use CPR BAND with your existing tablet PC.

Accuracy & Technology

CPR BAND can guide more highly precise CPR then
the existing product using our own algorism
with built-in sensors
